Bus кабел

За всички конвенционални автобусни системи, като Profibus, Interbus, Profinet, Ethernet, CAN-Bus, Device Net или Ethercat, ще намерите голям избор от висококачествени игъвкави автобусни кабели за енергийната верига тук. Всички наши Bus кабели отговарят на най-високите стандарти, са издръжливи и предлагат надеждна предавка на данни. Купете вашия кабел тук, защото всички наши Bus кабели са налични на склад и се отличават с различни външни материали на обвивката PVC, iguPUR, PUR или TPE. Също така можете да избирате между кабели с фактор на огъване до 7,5 xd, така че да ги използвате в енергийната верига без проблеми. Изпитахме и проверихме цялата гама от Bus кабели chainflex® в нашата лаборатория с площ от 3 800 m2 и предлагаме гаранция до 4 години. Намерете правилния Bus кабел за всеки тип шина и го купете директно онлайн.

Categories
Кабели за движение
Готови за свързване кабели
Неконфекционирани кабели
контролен кабел
дата кабел
захранващ кабел
Bus кабел
Кабели за измервателни системи
серво кабел
Коаксиални кабели
Фиброоптични кабели (FOC)
Специални кабели
кабел за робот
Пневматични корпуси
Filter
Core Requirements
Show details
Electrical information
Cable structure
Material
Requirements
List
Tile

Number of products: 8

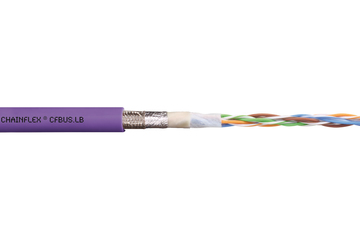

chainflex® bus cable CFBUS.LB
chainflex® bus cable CFBUS.LB
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • PVC-free
  • UV-resistant
  • Halogen-free
  • chainflex® class: 7.6.4.1
6.67 EUR/m
9 артикула, от които готови за изпращане от Германия:
8 за 48 часа
To the product page
UV resistance Medium Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 UL listed – filter EAC Certified to no. TC RU C-DE. ME77.B.01218 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization

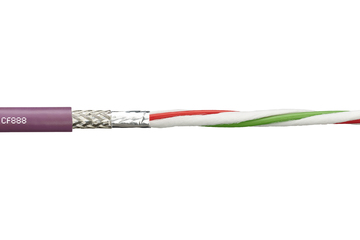

chainflex® bus cable CF888
chainflex® bus cable CF888
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Overall shield
  • Oil resistance: No oil resistance
  • Flame retardant
  • chainflex® class: 3.1.1.1
2.39 EUR/m
4 артикула, от които готови за изпращане от Германия:
4 за 48 часа
To the product page
Flame retardant According to IEC 60332-1-2, CEI 20-35, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details UL listed – filter EAC Certified to no. TC RU C-DE. ME77.B.01559 CTP Certified to no. C-DE. PB49.B.00449 Lead free Following 2011/65/EU (RoHS-II)

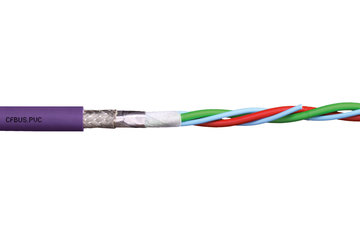

chainflex® bus cable CFBUS.PVC
chainflex® bus cable CFBUS.PVC
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Flame retardant
  • UV-resistant
  • chainflex® class: 4.3.2.1
3.23 EUR/m
13 артикула, от които готови за изпращане от Германия:
12 за 48 часа
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM Style 1598 and 2571, 30 V, 80 °C UL listed CMX, 75°C NFPA Following NFPA 79-2012 chapter 12.9 UL listed – filter EAC Certified to no. TC RU C-DE. ME77.B.01218 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF240.02.24, tested by IPA according to standard 14644-1

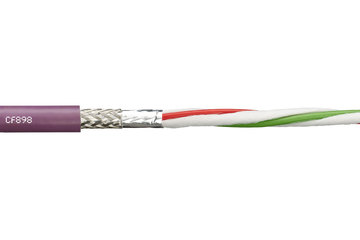

chainflex® bus cable CF898
chainflex® bus cable CF898
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Flame retardant
  • UV-resistant
  • chainflex® class: 3.1.3.1
3.76 EUR/m
9 артикула, от които готови за изпращане от Германия:
7 за 48 часа
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM CF898.001-CF898.060: Style 1598 and 20236, 80 V, 80 °C<br />CF898.080-CF898.081: Style 10493 and 20549, 300 V, 80 °C<br />CF898.082-CF898.083: Style 21866, 90 V, 80 °C UL listed – filter EAC Certified to no. TC RU C-DE. ME77.B.01559 CTP Certified to no. C-DE. PB49.B.00449 Lead free Following 2011/65/EU (RoHS-II)

chainflex® bus cable CFBUS.PUR
chainflex® bus cable CFBUS.PUR
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Flame retardant
  • PVC-free
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • Halogen-free
  • chainflex® class: 4.3.3.1
5.05 EUR/m
16 артикула, от които готови за изпращане от Германия:
16 за 48 часа
To the product page
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 UL/CSA AWM Style 1598 and 20236, 30 V, 80 °C<br />CFBUS.PUR.H01.049: Style 10493 (1,5 mm²), 11602 (0,15 mm²) and 20233,&nbsp;300 V, 80 °C<br />CFBUS.PUR.H01.060: Style 10493 (1,5 mm²), 11602 (0,38 mm²) and 20233,&nbsp;300 V, 80 °C UL listed CMX, 75°C NFPA Following NFPA 79-2012 chapter 12.9 UL listed – filter DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01218 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization

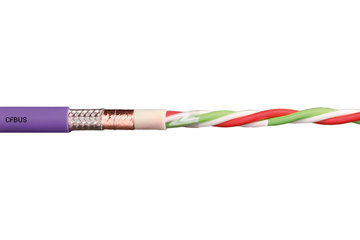

chainflex® bus cable CFBUS
chainflex® bus cable CFBUS
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Flame retardant
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • chainflex® class: 6.6.4.1
6.13 EUR/m
21 артикула, от които готови за изпращане от Германия:
19 за 48 часа
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM CFBUS.001-.035 and CFBUS.055: Style 1589 and 21371, 30 V, 80 °C<br />CFBUS.040-.052 and CFBUS.060: Style 10138 and 21235, 300 V, 80 °C NFPA Following NFPA 79-2012 chapter 12.9 UL listed – filter DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01218 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization

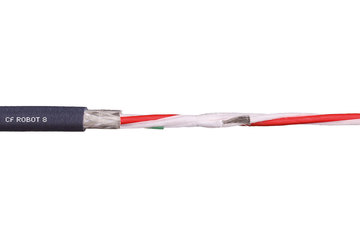

chainflex® bus cable CFROBOT8
chainflex® bus cable CFROBOT8
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Flame retardant
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • chainflex® class: 6.1.3.3
24.09 EUR/m
To the product page
UV resistance High Flame retardant According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM Style 1589 and 20236, 30 V, 80 °C<br />CFROBOT8.045-CFROBOT8.049: Style 1589 and 20236, 300 V, 80 °C<br />&nbsp; UL listed – filter EAC Certified to no. TC RU C-DE. ME77.B.01218 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1

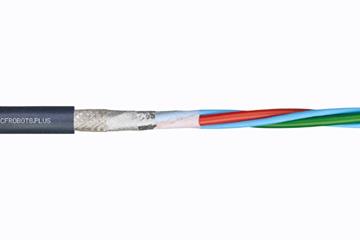

chainflex® bus cable CFROBOT8.PLUS
chainflex® bus cable CFROBOT8.PLUS
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Flame retardant
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • chainflex® class: 6.1.3.4
24.59 EUR/m
8 артикула, от които готови за изпращане от Германия:
8 за 48 часа
To the product page
UV resistance High Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM Style 1589 and 20236, 30 V, 80 °C UL listed – filter EAC Certified to no. TC RU C-DE. ME77.B.01218 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1
