Кабели за измервателни системи

Кабелите за измервателни системи chainflex®, както и резолверните кабели, кабелите за обратна връзка и енкодерните кабели за енергийни вериги® са кабели за средно до високо натоварване. Кабелите за измервателни системи имат различни одобрения и са налични за системи на практически всички известни производители като B&R, Baumüller, Heidenhain, Lenze или Siemens. В зависимост от типа, те са забавящи горенето, устойчиви на охлаждащи течности и масла, гъвкави при ниски температури или усукващи се. Тествани в лабораторията на igus® с милиони цикли в e-chains®, те осигуряват гарантирана безопасност срещу повреди.

  • Допустими радиуси на огъване до 10xd
  • Материали на обвивката: PVC, iguPUR, PUR или TPE

Categories
Кабели за движение
Готови за свързване кабели
Неконфекционирани кабели
контролен кабел
дата кабел
захранващ кабел
Bus кабел
Кабели за измервателни системи
серво кабел
Коаксиални кабели
Фиброоптични кабели (FOC)
Специални кабели
кабел за робот
Пневматични корпуси
Filter
Core Requirements
Show details
Cable structure
Electrical information
Requirements
Drive technology system
List
Tile

Number of products: 7

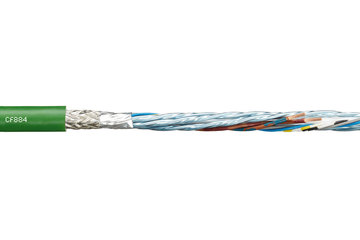

chainflex® measuring system cable CF884
chainflex® measuring system cable CF884
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Oil resistance: No oil resistance
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 3.1.1.1
2.72 EUR/m
7 артикула, от които готови за изпращане от Германия:
7 за 48 часа
To the product page
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM Style 1589 and 2502, 30 V, 80 °C NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01559 CTP Certified to no. C-DE. PB49.B.00449 Lead free Following 2011/65/EU (RoHS-II)

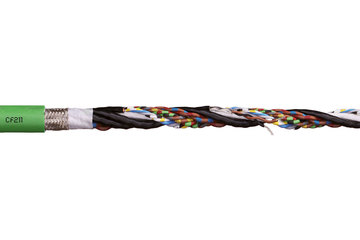

chainflex® measuring system cable CF211
chainflex® measuring system cable CF211
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Silicone-free
  • Flame retardant
  • chainflex® class: 4.2.2.1
4.09 EUR/m
25 артикула, от които готови за изпращане от Германия:
24 за 48 часа
To the product page
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM Style 1589 and 2502, 30 V, 80 °C NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01559 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2. Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1

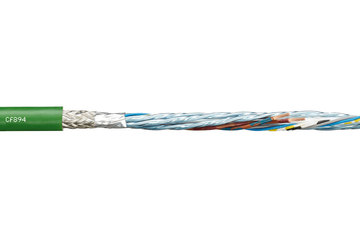

chainflex® measuring system cable CF894
chainflex® measuring system cable CF894
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Silicone-free
  • Flame retardant
  • chainflex® class: 3.1.3.1
3.38 EUR/m
7 артикула, от които готови за изпращане от Германия:
7 за 48 часа
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM Style 1589 and 20236, 300 V, 80 °C NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01559 CTP Certified to no. C-DE. PB49.B.00449 Lead free Following 2011/65/EU (RoHS-II)

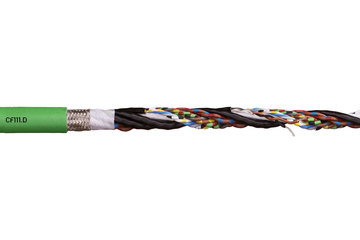

chainflex® measuring system cable CF111.D
chainflex® measuring system cable CF111.D
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Overall shield
  • Notch-resistant
  • PVC-free
  • chainflex® class: 4.2.3.1
5.20 EUR/m
20 артикула, от които готови за изпращане от Германия:
19 за 48 часа
To the product page
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 UL/CSA AWM Style 1589 and 20236, 30 V, 80 °C NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01559 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization

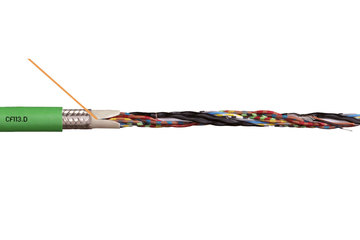

chainflex® measuring system cable CF113.D
chainflex® measuring system cable CF113.D
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Overall shield
  • Notch-resistant
  • PVC-free
  • CFRIP®
  • chainflex® class: 6.5.3.1
6.20 EUR/m
33 артикула, от които готови за изпращане от Германия:
29 за 48 часа
To the product page
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 UL/CSA AWM Style 1589 and 20236, 30 V, 80 °C NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01559 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization

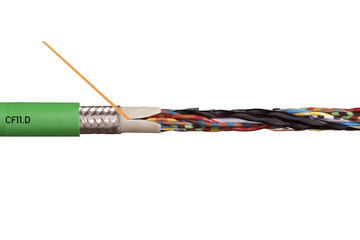

chainflex® measuring system cable CF11.D
chainflex® measuring system cable CF11.D
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Halogen-free
  • Silicone-free
  • Hydrolysis and microbe-resistant
  • PVC-free
  • CFRIP®
  • chainflex® class: 6.6.4.1
5.60 EUR/m
32 артикула, от които готови за изпращане от Германия:
22 за 48 часа
To the product page
UV resistance Medium Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 EAC Certified to no. TC RU C-DE. ME77.B.01559 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization

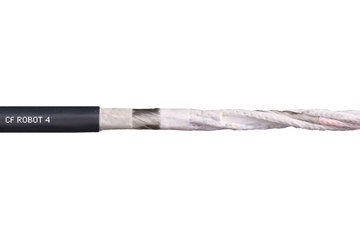

chainflex® measuring system cable CFROBOT4
chainflex® measuring system cable CFROBOT4
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Overall shield
  • Notch-resistant
  • PVC-free
  • chainflex® class: 6.1.3.3
19.62 EUR/m
5 артикула, от които готови за изпращане от Германия:
5 за 48 часа
To the product page
UV resistance High Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 UL/CSA AWM Style 1589 and 20236, 300 V, 80 °C NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01218 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1
