серво кабел

Ако са необходими гъвкави свързващи кабели за серво двигатели в кабеловодещата верига, сервокабелите chainflex® са идеалното решение. Те са специално проектирани и тествани в нашата 3800 м² тестова лаборатория за осигуряване на дълъг експлоатационен живот в кабеловодеща верига. Благодарение на различната си структура от една или две двойки, те отговарят на изискванията на най-разнообразни двигатели. От една страна, общото екраниране на кабела и отделното екраниране на двойките за спирачки и температурни сензори, например, осигуряват висок коефициент на защита на електромагнитна съвместимост. В нашия онлайн магазин ще намерите не само свързващи кабели за серводвигатели с PUR външна обвивка, но и с изключително устойчиви на абразия и по-евтини PVC. Тук можете да си купите и серво кабели с висококачествена TPE външна обвивка за покриване на най-високите изисквания, както и при малки радиуси на огъване до 6,8 x d.

Categories
Кабели за движение
Готови за свързване кабели
Неконфекционирани кабели
контролен кабел
дата кабел
захранващ кабел
Bus кабел
Кабели за измервателни системи
серво кабел
Коаксиални кабели
Фиброоптични кабели (FOC)
Специални кабели
кабел за робот
Пневматични корпуси
Filter
Core Requirements
Show details
Cable structure
Material
Electrical information
Requirements
Drive technology system
List
Tile

Number of products: 9

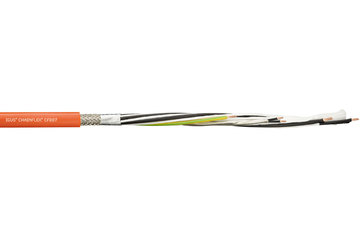

chainflex® servo cable CF887
chainflex® servo cable CF887
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Oil resistance: No oil resistance
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 3.1.1.1
5.04 EUR/m
7 артикула, от които готови за изпращане от Германия:
7 за 48 часа
To the product page
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01561 CTP Certified to no. C-DE. PB49.B.00450 Lead free Following 2011/65/EU (RoHS-II) UL/CSA AWM Style 10492 and 2570, 1.000 V, 80 °C

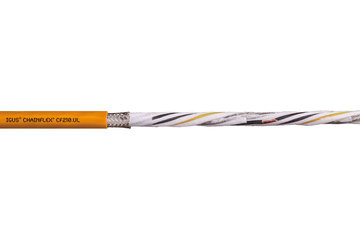

chainflex® servo cable CF210.UL
chainflex® servo cable CF210.UL
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 4.2.2.1
5.05 EUR/m
11 артикула, от които готови за изпращане от Германия:
11 за 48 часа
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.02324 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2. Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10989 and 2570, 1.000 V, 80 °C

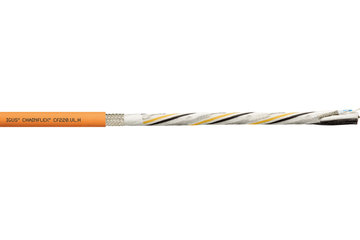

chainflex® hybrid servo cable CF220.UL.H
chainflex® hybrid servo cable CF220.UL.H
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 4.2.2.1
10.75 EUR/m
9 артикула, от които готови за изпращане от Германия:
8 за 48 часа
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2.  Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10989 and 2570, 1.000 V, 80 °C

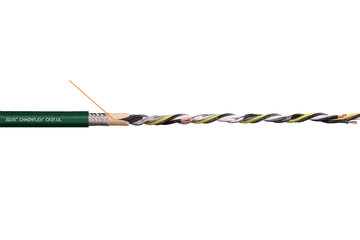

chainflex® servo cable CF21.UL
chainflex® servo cable CF21.UL
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Silicone-free
  • Flame retardant
  • Overall shield
  • CFRIP®
  • chainflex® class: 5.5.2.1
11.14 EUR/m
16 артикула, от които готови за изпращане от Германия:
14 за 48 часа
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2. Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10492 and 2570, 1.000 V, 80 °C

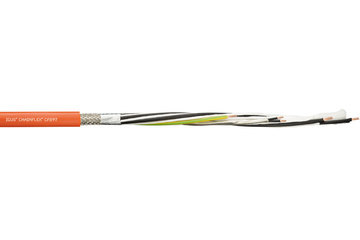

chainflex® servo cable CF897
chainflex® servo cable CF897
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 3.1.3.1
7.29 EUR/m
4 артикула, от които готови за изпращане от Германия:
4 за 48 часа
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01561 CTP Certified to no. C-DE. PB49.B.00450 Lead free Following 2011/65/EU (RoHS-II) UL/CSA AWM Style 10492 and 21223, 1.000 V, 80 °C

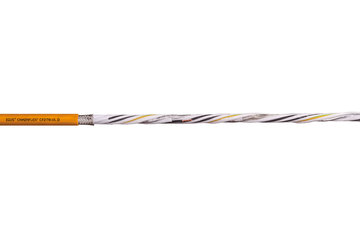

chainflex® servo cable CF270.UL.D
chainflex® servo cable CF270.UL.D
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Notch-resistant
  • Overall shield
  • PVC-free
  • chainflex® class: 4.2.3.1
4.84 EUR/m
35 артикула, от които готови за изпращане от Германия:
32 за 48 часа
To the product page
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization UL/CSA AWM Style 10989 and 21223, 1.000 V, 80 °C

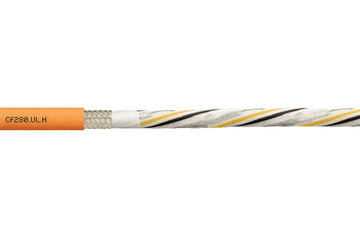

chainflex® hybrid servo cable CF280.UL.H
chainflex® hybrid servo cable CF280.UL.H
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Notch-resistant
  • Overall shield
  • PVC-free
  • chainflex® class: 4.2.3.1
12.17 EUR/m
26 артикула, от които готови за изпращане от Германия:
23 за 48 часа
To the product page
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization UL/CSA AWM Style 10989 and 21223, 1.000 V, 80 °C

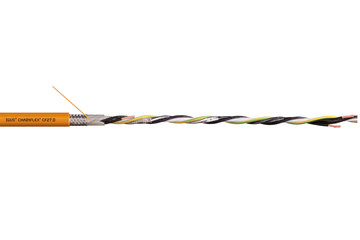

chainflex® servo cable CF27.D
chainflex® servo cable CF27.D
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Notch-resistant
  • Overall shield
  • PVC-free
  • CFRIP®
  • chainflex® class: 6.5.3.1
8.45 EUR/m
25 артикула, от които готови за изпращане от Германия:
25 за 48 часа
To the product page
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization UL/CSA AWM Style 10492 and 20234, 1.000 V, 80 °C

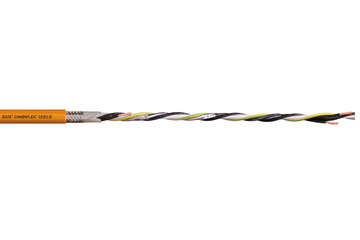

chainflex® servo cable CF29.D
chainflex® servo cable CF29.D
  • Requirements: For heaviest duty applications
  • Outer jacket: TPE
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Halogen-free
  • Silicone-free
  • Overall shield
  • PVC-free
  • chainflex® class: 7.6.4.1
19.03 EUR/m
3 артикула, от които готови за изпращане от Германия:
3 за 48 часа
To the product page
UV resistance Medium Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization
