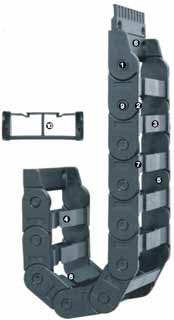

1. Large pins - long service life2. Torsional motion possible3. Version "E", filled along the outer radius4. Version "Z", filled along the inner radius5. Cable-friendly interior6. Mounting element with integrated strain relief possible7. Dirt-repellent outer contour8. Very easy to fill - Cable is just pushed in9. Patented "push button principle" holds links together 10. Available with 1 or 2-chamber design (permanently injection-moulded multiple chamber design for cable separation Series Z200
Available Inner widths:2x37,2x50 mmAvailable bend radii R: 55 to 200 mmPitch: 46 mm/link = 22 links/m
* The required clearance height is HF = H + 40 mm (at 2.5 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.
Crossbars overlapping on the opening mechanism A=moving end, B=fixed endPitch: 46mmLinks / m: 22Travel: SChain length = S/2 + K
The unsupported length depends on fill weightX axis: unsupported length in m FLB/FLGY axis: fill weight in kg/mLower scale: travel S in mFLB = unsupported with permissible sagFLG = unsupported with straight upper run
