Multi-axis energy chain for robots - triflex® R


In 3D applications, rotating and pivoting movements are part of everyday life. Energy chains are required here, which safely guide and protect robot cables. The triflex R (TRE, TRC and TRL) energy chain has been specifically developed for demanding multi-axis robots. Due to its high tensile force absorption and high flexibility, the energy chain enables a rotation of about ±10° per chain link with complicated motions in the vertical axes. Compared to a cable protection hose, triflex R offers a defined bend radius, which greatly increases the service life of cables and hoses.

Contact our expert now

5 highlights in a 2-minute video

Innovations for robot technology

Tech up, Cost down: new cables, e-chains® and retraction systems specifically for robotics technology

You can find more information on these and further product innovations at our 400m2 trade show stand. You can either explore it virtually on your own or together with our industry expert. Make an appointment now for a guided virtual tour with individual consultation:


All 2020 new products and product extensions



    triflex_R_TR.917.924

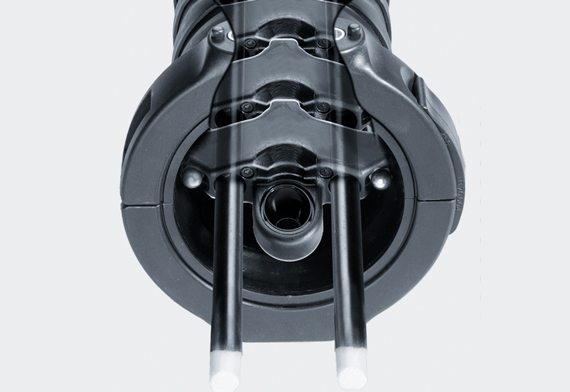

    Fibre-rod holder for UR10 and UR10e

    ▲ Tech up

    • Elongated holes enable infinitely variable adjustability of the fibre-rod module
    • Easy to retrofit (assembly video)
    • Low wear by holding the e-chain®  above the axis 4-6
    ▼ Cost down




    Go to UR fibre-rod holder
    e-chains_triflex_TR.RSEC.60

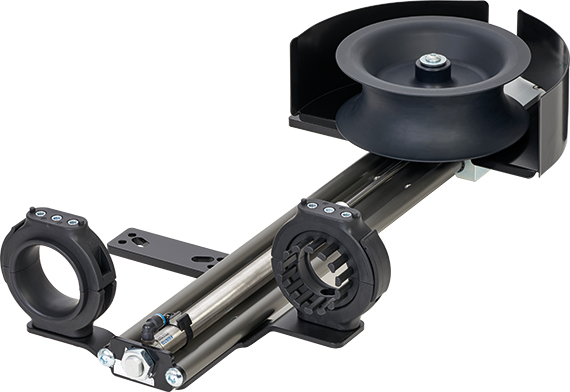

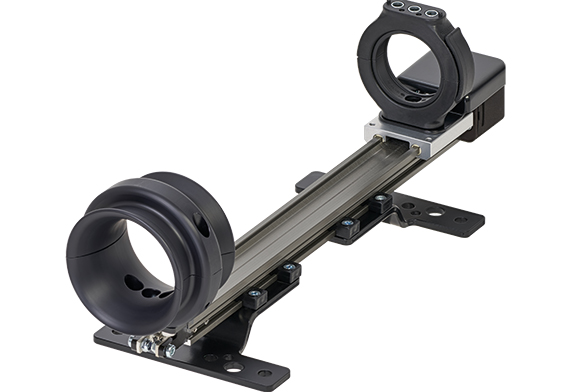

    Compact linear retraction system

    ▲ Tech up

    • System weight of only 2.2kg
    • Up to 290mm of retraction length
    • Easy to retrofit
    • Prevent loops on
      axes 4-6
    • Fixed end of the e-chain® can be freely placed due to the linear design
    ▼ Cost down
    • High running performance
    • 40 % more cost-effective compared to TR.RSE.60 retraction system
    • Reduction of downtime, maintenance-free
    • Modularised structure to the TR.RSE.40 and TR.RSE.50 retraction systems

    Go to TR.RSEC.60
    e-chains_triflex_TR.RSEL.60

    Retraction system in compact sizes 60 and 65

    ▲ Tech up

    • Up to 380mm of retraction length
    • Easy to retrofit
    • Prevent loops on
      axes 4-6
    • Optional guide plate behind the retraction system minimises wear of the e-chain®
    ▼ Cost down
    • High running performance
    • Less downtime, maintenance-free
    • Modularised structure to the TR.RSEL.70 and TR.RSEL.85 retraction systems




    Go to TR.RSEL.60

    Extension of the robot equipment configurator by:

    • 20 collaborating robots from Universal Robots, Techman Robots, Kuka to Yaskawa
    • Quantec-2 from Kuka
    • GP series from Yaskawa
    This results in an additional 2,000 variations, now with a total of up to 12,500 equipment variants in one tool.

    Try it for yourself

    Your benefits at a glance:

    • Defined minimum bend radius for safe cable and hose routing in moving applications

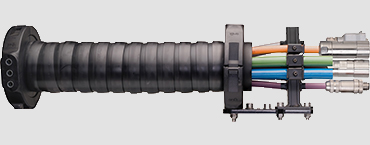

    • Also as a complete solution including  cables for the energy chain
    • High torsion resistance and defined torsion stop-dog
    • Modular design, can be easily lengthened and shortened
    • Option with fibre-rod
    • Easy assembly
    • Easy filling
    • Available from stock

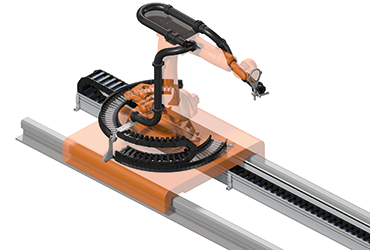

    Robot

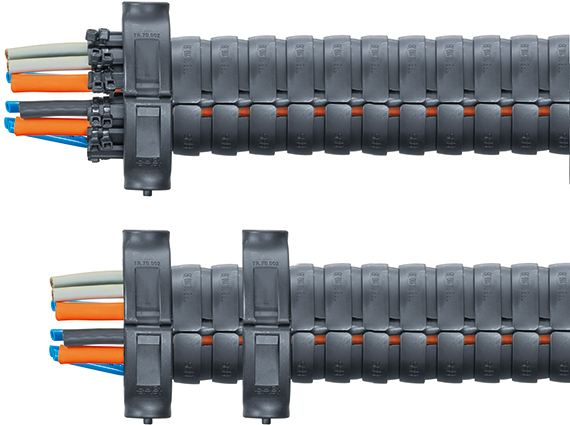

    Energy chains for axis 2-6

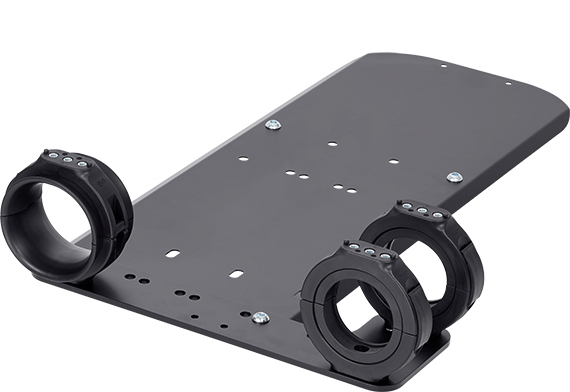

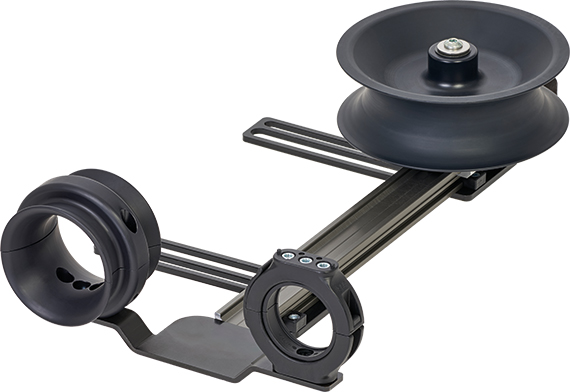

    Retraction systems for axes 3-6

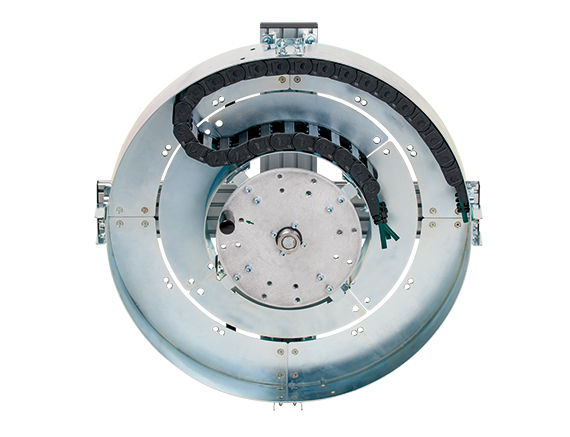

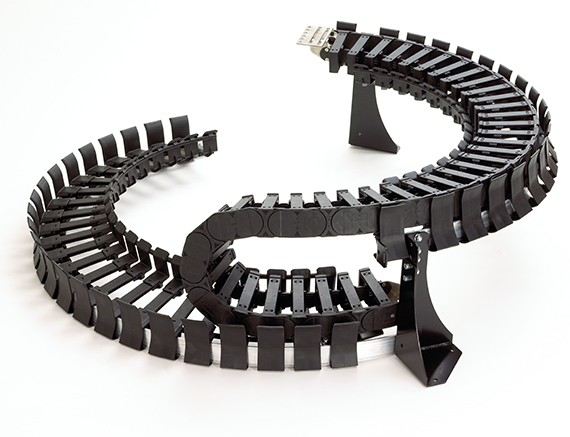

    Systems for the axis 1

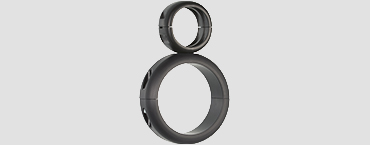

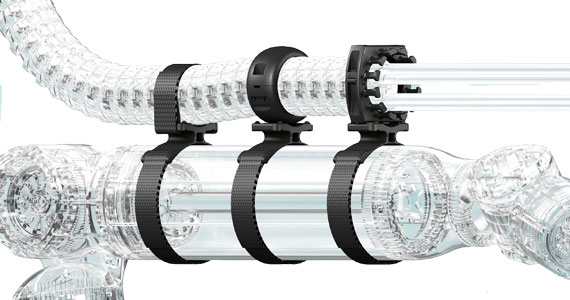

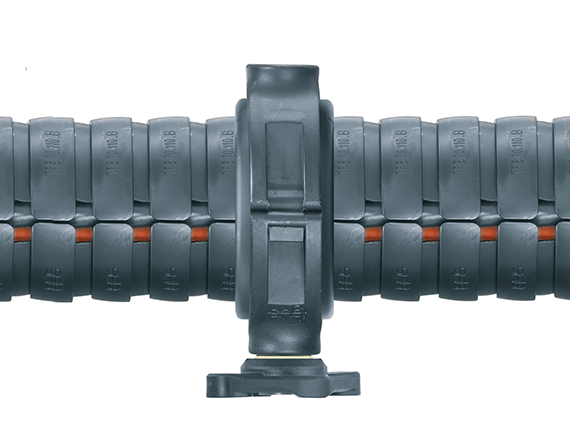

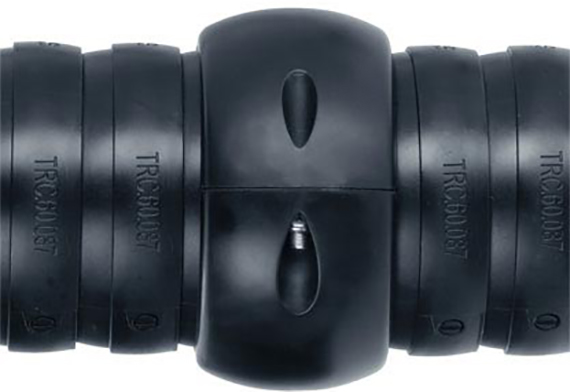

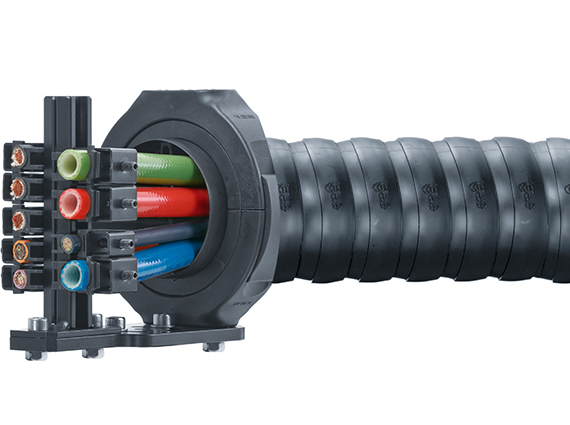

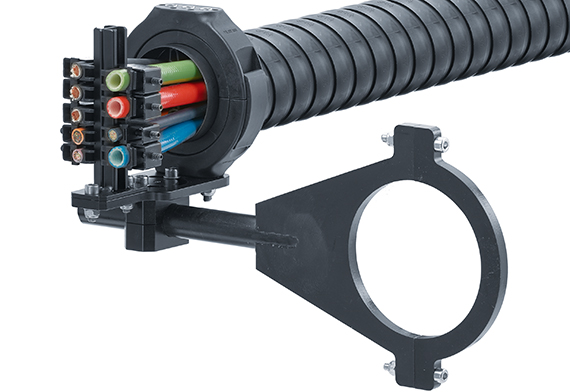

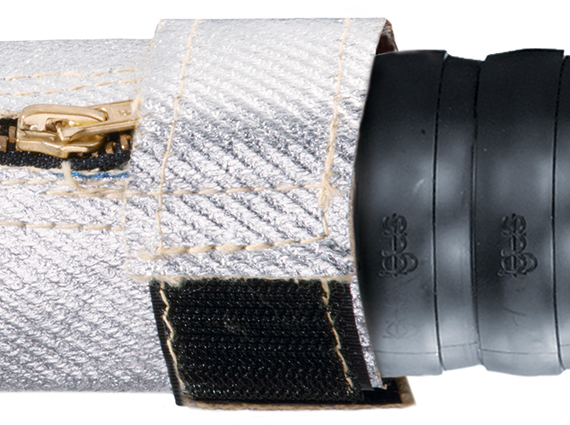

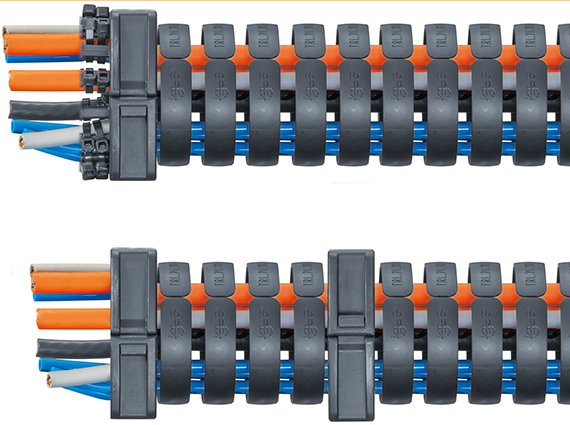

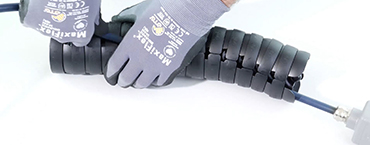

    Accessories for robots

    Further products

    SCARA solution

    SCARA solution

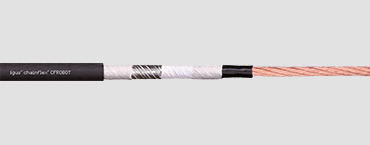

    chainflex robot cables

    chainflex® robot cables

    Application examples of our customers

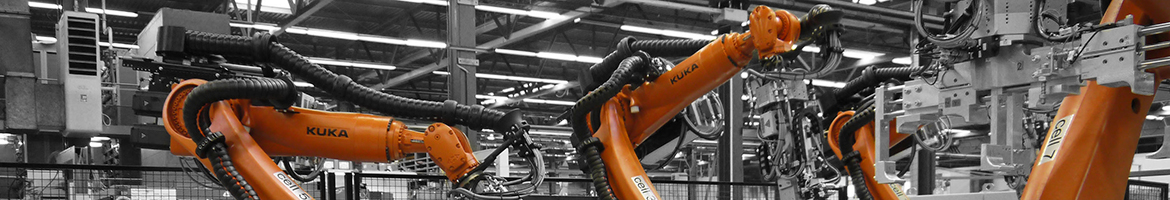

    Three dimensional energy chains for robotic applications
