Контрол на двигателя

Системата за управление на двигатели igus D1 и D2 може да се използва за всеки тип двигател. С изключение на системата за управление на двигатели igus D3, всички те могат да работят на 48V. Системата за управление на двигателя igus D3 работи с 24V. Системите за управление на двигатели D3, D7, D8 и D9 са предназначени за проста автоматизация директно върху системата за управление и следователно не изискват никакъв софтуер и/или компютър. Системата за управление на двигателя igus D1 и D2 също не изисква допълнителна инсталация на софтуер, но се програмира въз основа на уеб браузъри. По този начин настройките могат да се параметризират на компютър, но и на таблет и смартфон. За това не се изискват познания по програмиране. Всички изходни етапи могат да работят и като подчинени, което ги прави универсални.

List
Tile

Number of products: 9

drylin® D7- (X) stepper motor output stage
drylin® D7- (X) stepper motor output stage
  • Suitable for 28 - 42mm motor flange size (NEMA11-17)
  • Up to 3A peak current
  • 5-24V control & 24-48V load voltage
  • Operation mode 1: clock/direction
  • Operation mode 2: D7 & D7-1: jog mode; D7-2& D7-3: loop mode
  • Quiet operation & automatic tuning
91.23 EUR/Pc.
4 артикула, от които готови за изпращане от Германия:
4 за 24-48 часа
To the product page

drylin® D8- (X) stepper motor output stage
drylin® D8- (X) stepper motor output stage
Product information
  • Without connecting cable
  • Set consists of 3x drylin® D8

  • Can control stepper motors with a continuous current of up to 4A with a supply voltage of up to 48V
  • Ready to use immediately
  • Easy control
  • Exact positioning
111.93 EUR/Pc.
4 артикула, от които готови за изпращане от Германия:
4 за 24-48 часа
To the product page

drylin® D2 motor control system for stepper, DC and EC/BLDC motors
drylin® D2 motor control system for stepper, DC and EC/BLDC motors
  • A wide range of automation tasks by simple parameterisation, no programming necessary
  • For single axes, line, flat, linear and room linear robots and delta robots
  • No software installation or app required
  • Use with PC, tablet or smart phone
  • Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V
  • Digital inputs/outputs, analogue inputs, CANopen, ModbusTCP (CANopen Gateway) for connection to master control systems such as Siemens or Beckhoff

The drylin® D1 motor control system and the D2 are identical except for the housing.
493.53 EUR/Pc.
1 артикула, от които готови за изпращане от Германия:
1 за 24-48 часа
To the product page

drylin® D9- (X) stepper motor output stage
drylin® D9- (X) stepper motor output stage
  • Suitable for 86mm motor flange size (NEMA34)
  • Up to 9.8A peak current
  • 5-24V control & 24-48V load voltage
  • Operation mode 1: clock/direction
  • Operation mode 2: D7 & D7-1: jog mode; D7-2& D7-3: loop mode
  • Quiet operation & automatic tuning
122.68 EUR/Pc.
4 артикула, от които готови за изпращане от Германия:
4 за 24-48 часа
To the product page

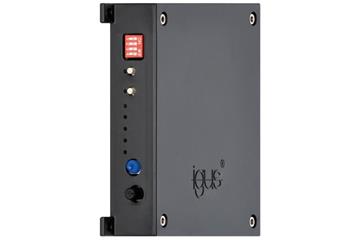

drylin® D3 for direct current motors
drylin® D3 for direct current motors
  • Simple automation directly using the control system without software and/or PC
  • Operation with limit switch or via power consumption
  • Left/right operation and speed control directly on the housing
  • Option for external switches/joysticks
  • Various modes of operation, such as tip operation and start to finish (semi-automatic)
  • Various adjustable acceleration ramps
  • Power supply via 24V/2.5A

    All relevant documents for dryve D3 can be found in the downloads.
172.87 EUR/Pc.
1 артикула, от които готови за изпращане от Германия:
1 за 24-48 часа
To the product page

drylin® D3-LM motor control system for DC motors with loop mode
drylin® D3-LM motor control system for DC motors with loop mode
  • Same dimensions as the standard D3
  • Extended functions for "Micro Automation"
  • Individually preprogrammed pendulum movements
  • Individually preprogrammed pause times between movements
Upon request
1 артикула, от които готови за изпращане от Германия:
1 за 10 работни дни
To the product page

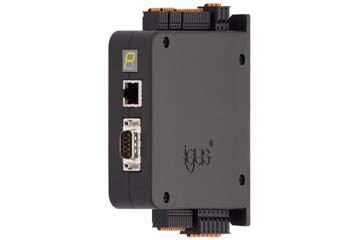

drylin® D1 motor control system for stepper, DC and EC/BLDC motors
drylin® D1 motor control system for stepper, DC and EC/BLDC motors
  • A wide range of automation tasks by simple parameterisation, no programming necessary
  • For single axes, line, flat, linear and room linear robots and delta robots
  • No software installation or app required
  • Use with PC, tablet or smart phone
  • Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V
  • Digital inputs/outputs, analogue inputs, CANopen, ModbusTCP (CANopen Gateway) for connection to master control systems such as Siemens or Beckhoff

    TEST BEFORE INVEST - Try out the motor control system with online simulation here before you buy
509.33 EUR/Pc.
1 артикула, от които готови за изпращане от Германия:
1 за 24-48 часа
To the product page
New

drylin D5 DC motor output stage
drylin D5 DC motor output stage
drylin D5 DC motor output stage
  • Ready for immediate use. No parameterization or programming necessary
  • Left/right run via digital input
  • Velocities & accelerations via external PWM input signal
  • 12-24V supply voltage
  • 10A nominal current / 30A peak current
  • With housing for industrial use
  • Free pattern programs here
127.15 EUR/Pc.
1 артикула, от които готови за изпращане от Германия:
1 за 24-48 часа
To the product page
New

drylin D6 DC motor output stage
drylin D6 DC motor output stage
drylin D6 DC motor output stage
  • Ready for immediate use. No parameterization or programming necessary
  • Left/right run via digital input
  • Velocities & accelerations via external PWM input signal
  • 12-24V supply voltage
  • 10A nominal current / 30A peak current
  • With housing for industrial use
  • Free pattern programs here
114.90 EUR/Pc.
1 артикула, от които готови за изпращане от Германия:
1 за 24-48 часа
To the product page
