"Classic" series - available on a continuing basis

Download

"Classics" catalog - older products available on a continuing basis

D-CLASSICS-2013-SCREEN.pdf

Zipper "Classic" e-chain® - Quick installation with zipper

Series 15

Rip-open from outside

Inner height hi: 17 mm
Inner widths Bi: 15 - 50 mm
bending radii R: 38 - 180 mm
Pitch: 30,5 mm

E2 mini "Classic" - One- and two-piece - Small up to medium sizes

Series 10

Closed design

Inner height hi: 18 mm
Inner widths Bi: 15 - 50 mm
bending radii R: 28 - 180 mm
Pitch: 30,5 mm

Series B15

Snap-open along outside on one side

Inner height hi: 17 mm
Inner widths Bi: 15 - 50 mm
bending radii R: 38 - 180 mm
Pitch: 30,5 mm

E2 medium "Classic" - For new constructions, please provide for E2/000

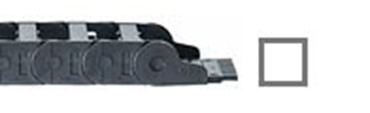

Closed design

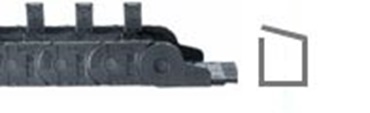

Crossbars opened on the inside

Opened on one side

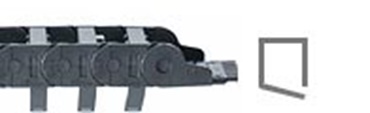

Crossbars opened on the outside

Opened on one side

Closed design

Series 200 , Inner height hi: 25 mm, Inner widths Wi: 25 - 125 mm, Bending radii R: 55 - 250 mm, Pitch: 46 mm

Series 26 , Inner height hi: 35 mm, Inner widths Wi: 50 - 200 mm, Bending radii R: 63 - 250 mm, Pitch: 56 mm

Series 20 , Inner height hi: 25 mm, Inner widths Wi: 11 - 103 mm, Bending radii R: 55 - 250 mm, Pitch: 46 mm

Series 30 , Inner height hi: 45 mm, Inner widths Wi: 75 - 175 mm, Bending radii R: 75 - 300 mm, Pitch: 67 mm

Snap-open along one side, crossbars to be opened from inside

Series 240 , Inner height hi: 25 mm, Inner widths Wi: 25 - 125 mm, Bending radii R: 55 - 250 mm, Pitch: 46 mm

Series 27 , Inner height hi: 35 mm, Inner widths Wi: 50 - 200 mm, Bending radii R: 63 - 250 mm, Pitch: 56 mm

Series 340 , Inner height hi: 45 mm, Inner widths Wi: 50 - 250 mm, Bending radii R: 75 - 300 mm, Pitch: 67 mm

Series 36 , Inner height hi: 45 mm, Inner widths Wi: 75 - 175 mm, Bending radii R: 75 - 300 mm, Pitch: 67 mm

Snap-open along one side, crossbars to be opened from outside

Series 250 , Inner height hi: 25 mm, Inner widths Wi: 25 - 125 mm, Bending radii R: 55 - 250 mm, Pitch: 46 mm

Series 27 , Inner height hi: 35 mm, Inner widths Wi: 50 - 200 mm, Bending radii R: 63 - 250 mm, Pitch: 56 mm

Series 350 , Inner height hi: 45 mm, Inner widths Wi: 50 - 250 mm, Bending radii R: 75 - 300 mm, Pitch: 67 mm

Series 25 , Inner height hi: 25 mm, Inner widths Wi: 11 - 103 mm, Bending radii R: 55 - 250 mm, Pitch: 46 mm

Series 35 , Inner height hi: 45 mm, Inner widths Wi: 75 - 175 mm, Bending radii R: 75 - 300 mm, Pitch: 67 mm

E2 R "Classic" - Two-piece E-Tubes - Chip protection - Very silent operation

Snap-open along the outside

Two-part E-Tube

Inner height hi: 35 mm
Inner widths Bi: 50 - 75 mm
bending radii R: 75 - 250 mm
Pitch: 33,3 mm

Series R58 old

Two-part E-Tube

Inner height hi: 45 mm
Inner widths Bi: 75 - 175 mm
bending radii R: 100 - 300 mm
Pitch: 36 mm

Series R68 old

E4/light "Classic" - Expiring series - For new constructions, please use E4/light

With crossbars at every link, snap-open along both sides

With crossbars at every other link, snap-open along both sides

E-Tube, snap-open on both sides

Pivotable cover

With crossbars at every link, snap-open along both sides

Series 140 , Inner height hi: 56 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm

Series 142 , Inner height hi: 62 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm

Series 150 , Inner height hi: 80 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 150 - 500 mm, Pitch: 91 mm

With crossbars at every other link, snap-open along both sides

Series 141 , Inner height hi: 56 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm

Series 143 , Inner height hi: 62 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm

Series 151 , Inner height hi: 80 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 150 - 500 mm, Pitch: 91 mm

E-Tube, snap-open along both sides, swivel lid

Series R188 , Inner height hi: 56 mm, Inner widths Wi: 75 - 462 mm, Bending radii R: 150 - 500 mm, Pitch: 91 mm

Series R198 , Inner height hi: 80 mm, Inner widths Wi: 75 - 462 mm, Bending radii R: 200 - 500 mm, Pitch: 91 mm

E4/0 "Classic" - Expiring series - For new constructions, please use E4/0

With crossbars at every link, snap-open along both sides

With crossbars at every other link, snap-open along both sides

E-Tube, snap-open on both sides

Pivotable cover

With crossbars at every link, snap-open along both sides

Series 22 , Inner height hi: 28 mm, Inner widths Wi: 40 - 300 mm, Bending radii R: 55 - 250 mm, Pitch: 46 mm

Series 28 , Inner height hi: 32 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 63 - 300 mm, Pitch: 56 mm

Series 38 , Inner height hi: 42 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 75 - 350 mm, Pitch: 67 mm

Series 40 , Inner height hi: 56 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm

Series 50 , Inner height hi: 80 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 150 - 1000 mm, Pitch: 91 mm

With crossbars at every other link, snap-open along both sides

Series 23 , Inner height hi: 28 mm, Inner widths Wi: 40 - 300 mm, Bending radii R: 55 - 250 mm, Pitch: 46 mm

Series 29 , Inner height hi: 32 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 63 - 300 mm, Pitch: 56 mm

Series 39 , Inner height hi: 42 mm, Inner widths Wi: 50 - 400 mm, Bending radii R: 75 - 350 mm, Pitch: 67 mm

Series 41 , Inner height hi: 56 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 135 - 500 mm, Pitch: 91 mm

Series 51 , Inner height hi: 80 mm, Inner widths Wi: 50 - 600 mm, Bending radii R: 150 - 1000 mm, Pitch: 91 mm

E-Tube, snap-open along both sides, swivel lid

Series R76 , Inner height hi: 28 mm, Inner widths Wi: 50 - 300 mm, Bending radii R: 75 - 250 mm, Pitch: 46 mm

Series R77 , Inner height hi: 32 mm, Inner widths Wi: 50 - 300 mm, Bending radii R: 125 - 300 mm, Pitch: 56 mm

Series R78 , Inner height hi: 42 mm, Inner widths Wi: 50 - 300 mm, Bending radii R: 125 - 350 mm, Pitch: 67 mm

Series R88 , Inner height hi: 56 mm, Inner widths Wi: 75 - 462 mm, Bending radii R: 150 - 500 mm, Pitch: 91 mm

Series R98 , Inner height hi: 80 mm, Inner widths Wi: 75 - 462 mm, Bending radii R: 200 - 1000 mm, Pitch: 91 mm

E-Band

Series E-Band (PDF file)

Filling in the outer radius

Inner height hi: 25.5 mm
Inner width Bi: 25,5 mm
Bending radii R: 45 - 200 mm
Pitch: 25 mm

Series E-Band (PDF file)

System autoglide

Series AG200

Version 2 - For Series 200 e-chains®

Injection-molded autoglide teeth along the inner radius.

Inner height hi: 25 mm
Inner height Bi: 57 mm
Bending radii R: 100 mm
Pitch: 45 mm
