drylin® N - Low profile linear guide system long NW-04-27

Order no. Weight of rail Max. rail lengths Price / m
  [g/m] [mm]
ready for shipping in 24-48 hours NS-01-27 290 3000 60.13 BGN Add to shopping cart
ready for shipping in 24-48 hours NS-01-27-UNGEBOHRT 290 3000 54.73 BGN Add to shopping cart
ready for shipping in 24-48 hours NS-01-27-AR 290 3000 72.18 BGN Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

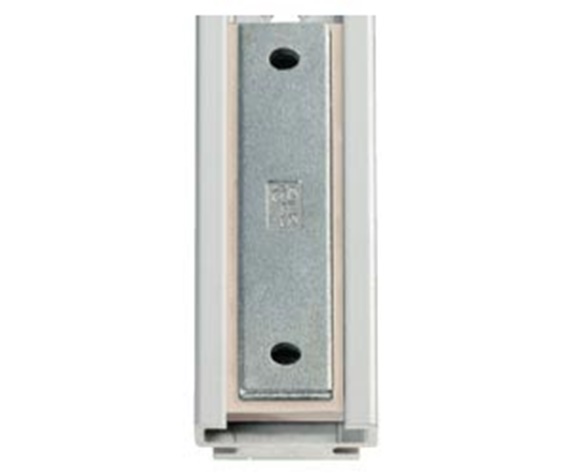

Version 04: Double carriage with through hole

Order no. Weight of carriage
  [g]
ready for shipping in 24-48 hours NW-11-27-80-LLY 25 15.96 BGN Add to shopping cart
ready for shipping in 24-48 hours NW-11-27-80-LLZ 25 15.96 BGN Add to shopping cart
ready for shipping in 24-48 hours NW-11-27-80-LLYZ 25 15.96 BGN Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriage
3. Entry of the rail length in mm
4. Selection of the carriage options
5. Selection of the rails options.

Hint:

Detailed information can be found below in the drawings as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.
1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction

drylin® NK – complete set

Step 1

Enter the required number of carriages.

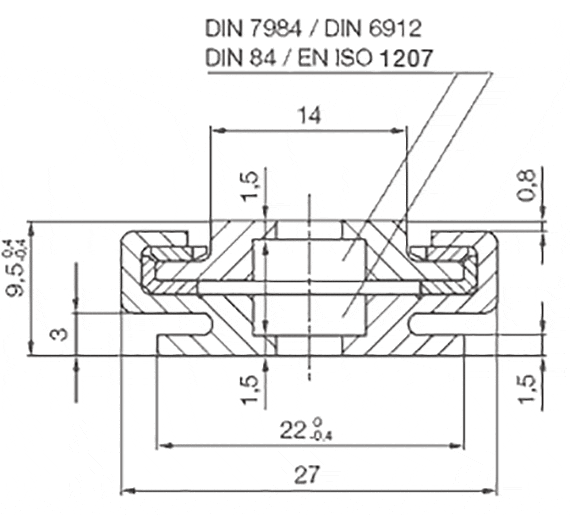

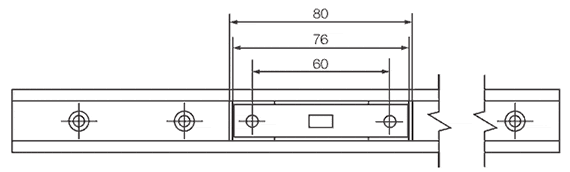

technical drawing
No. of carriages:
Continue
drylin® N - Technical data
drylin® N - Design rules
ready for shipping in 24-48 hours
